products

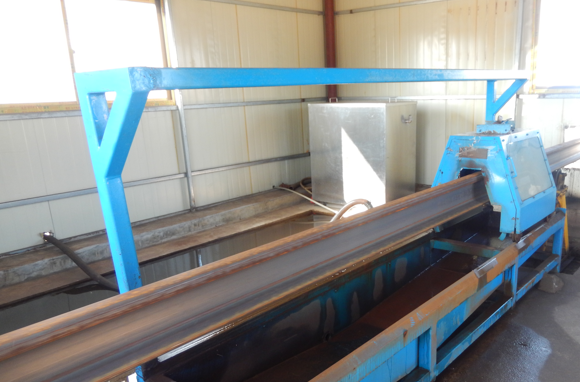

spray cooling equipment
发布时间：2024-09-25浏览次数：593
main parameters
power supply: 380v ± 10%, 50hz
submersible pump power: 0.75kw
submersible pump lift: 10m
submersible pump flow: 10 cubic meters per hour
submersible pump speed: 1450r/min
submersible pump diameter: 50mm
dimensions of water cooling equipment: 2620*620*1400 mm
storage tank capacity: 10 cubic meters
