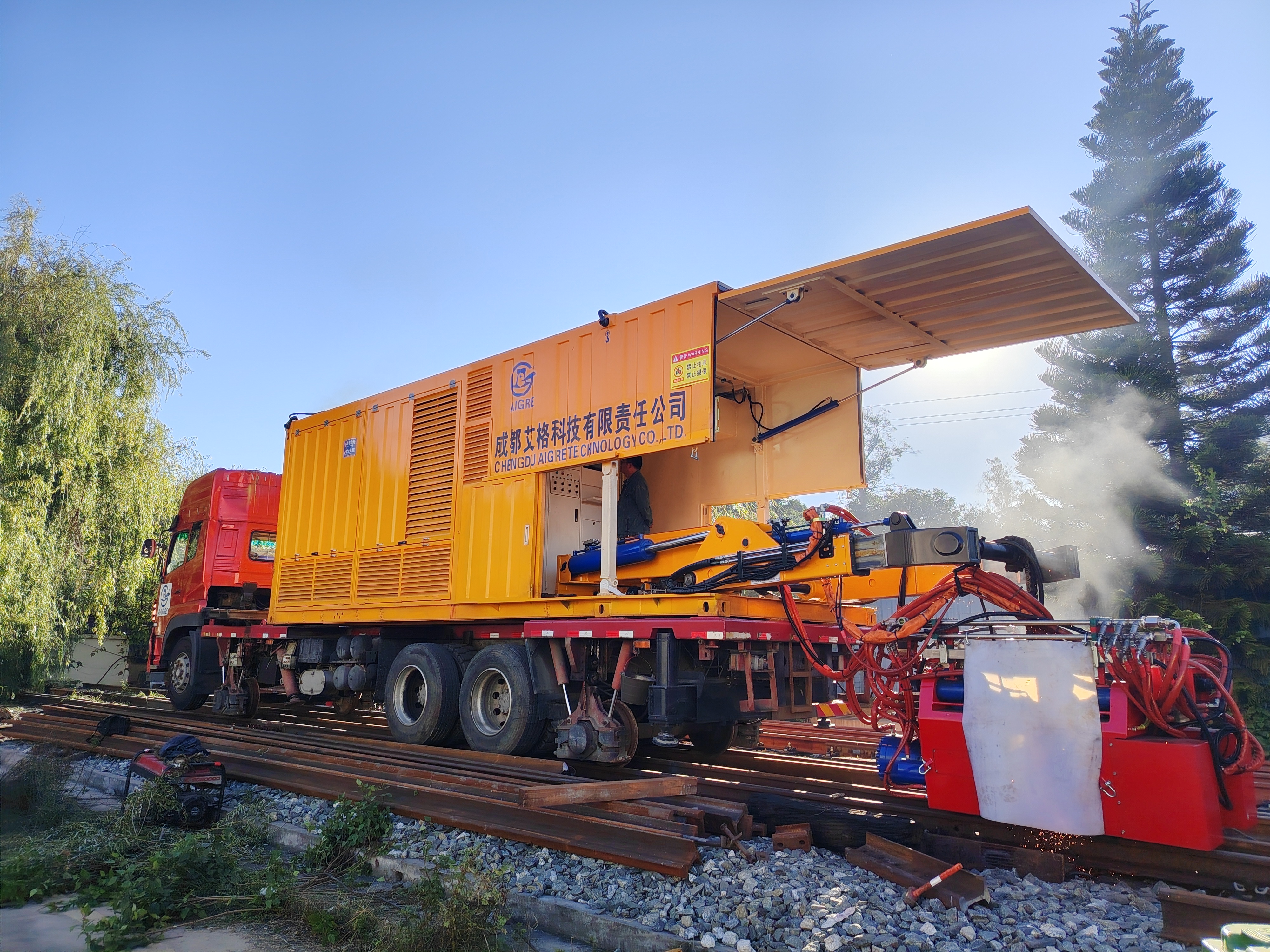

un5-150zb6 mobile narrow-body rail flash butt welder
发布时间：2025-04-27浏览次数：125
product features:
primarily designed for flash welding of rail switch welds, this equipment features a specialized narrow-body clamp structure that enables operation in confined spaces with a minimum clearance of 130 mm.
main technical parameters:
maximum weldable rail cross-sectional area (mm²): 10000
rated pressure of hydraulic system (mpa): 25
rated upsetting force (kn): 80
maximum clamping force (kn): 2500
weight of welding head (kg): 4500
generator set: 400 kw power, 400 v (50 hz)
overall dimension (length *width *height):
9-meter-long container: 9100*2438*2658mm
double container: 6460*2680*2890mm
generator container：5760*2680*2890mm
