products
product features:

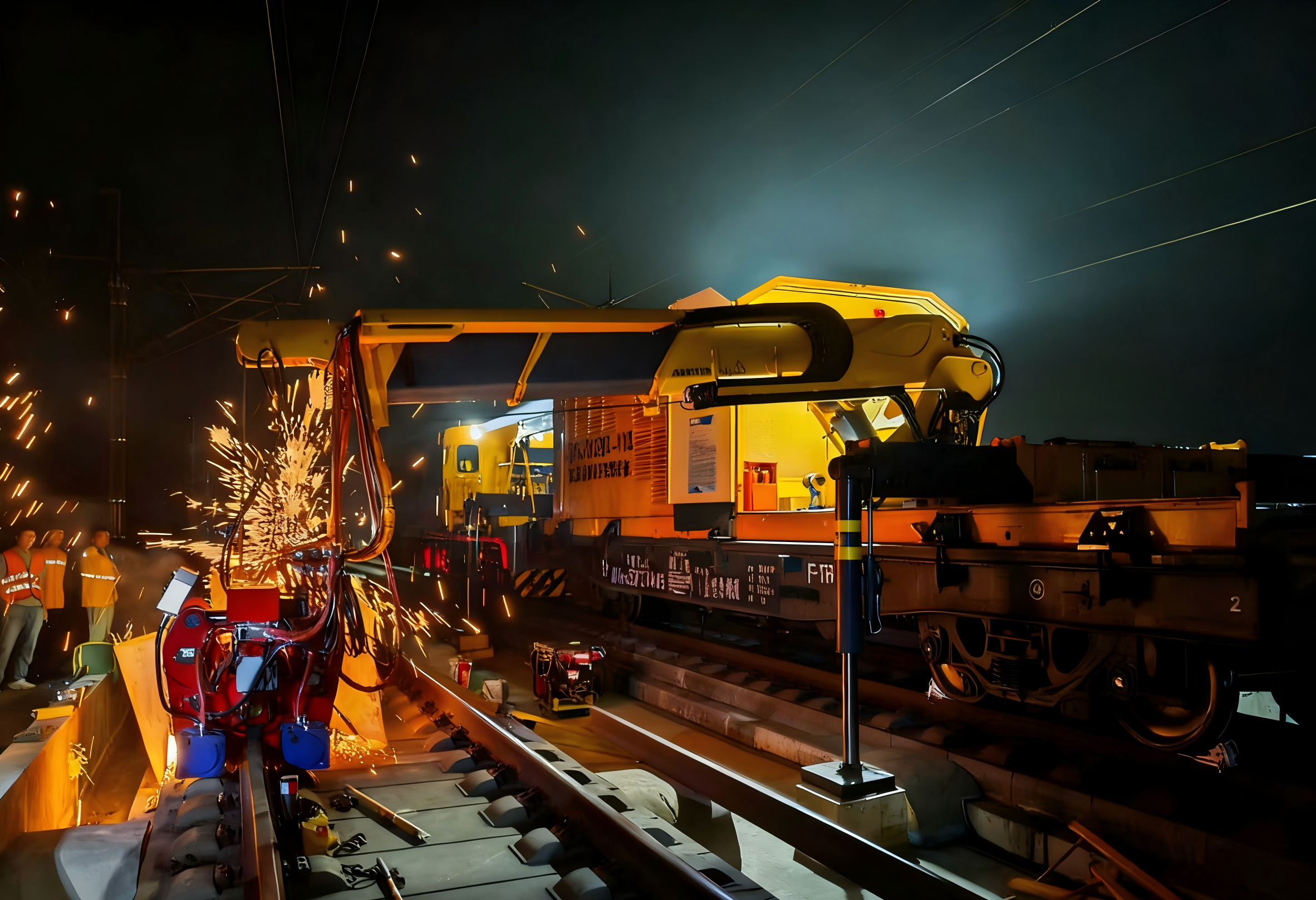

1.realizes the core function of "parking on the current line and operating on the current and adjacent lines". it can complete the rail welding operations on the current line and the adjacent lines within a radius of 7m centered on the current line without the need for equipment and vehicle line transfer.
2.integrates the welding and normalizing function in one to achieve continuous and efficient processing of welded joint quality.
3.capable of performing rail welding operations without power failure of the catenary.
4.adapts to the operating environment of straight and curved sections (including sections with a maximum super-elevation of 175mm).
5.can realize flash welding and normalizing operations of switches by switching the special switch welding head.
main technical parameters：
maximum welding stroke: 120mm
rated pressure of hydraulic system: 25mpa
maximum weldable rail cross-sectional area: 10000mm²
maximum upsetting force: 1200/1000kn(switch welding head)
maximum clamping force: 3000kn
maximum air injection pressure: 0.6mpa
air injection cooling time: ≥300s
normalizing heating time: ≤240s
medium-frequency normalizing frequency: 1.0～2.5generator power(kw): 400khz
flatness accuracy of welded joints (mm/1m):
rail top surface: 0～＋0.2
rail bottom surface: 0～＋0.5
inner working surface of rail head: 0～＋0.2
performance of welding machine hoisting device:
slewing radius: 7m
rotation angle: 180 degrees (±90°)
luffing angle: -7°～0°
leveling angle range: ±4°
stroke of leveling cylinder: 120mm
maximum operating curve superelevation: 175mm
rated hoisting weight at a slewing radius of 7m: 10t
overall dimension(l×w×h):12880×2780×2656mm
total weight:38t
welding method: continuous flash welding, pulsating flash welding
centering method: rail web and rail top centering
shearing method:shearing by pressure
applicable rail types:
50kg/m, 60kg/m, 75kg/m, etc.
